Design and Advanced Features
Water cooled motor to ensure a long life in continuous and intermittent operation, with high efficiency and energy savings.
Incorporating a dry motor with thermal auto-cut that prevents the motor from heating.
Greatly increased maximum submersion depth due to mechanical seal resistant to high pressure.
The cast iron upper cover and strengthened AISI304SS pumps casing, which can provide better anti-hitting performance.

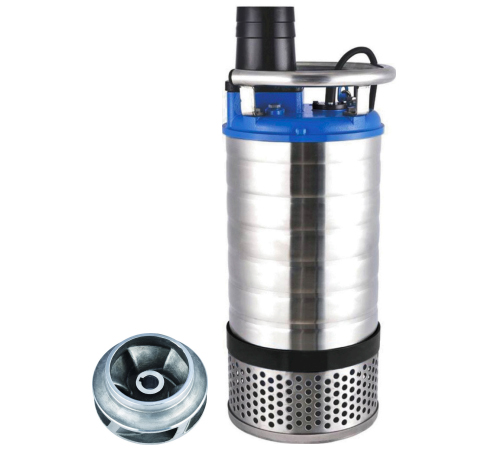

The impeller is designed by 3D technology and made of chrome steel, which can improve the efficiency and extend the product lifetime.
The KC pump strainer can be easily removed and replaced with a check valve, which allows for dewatering up to max.8m deep of underground water and water circulation applications.

Applications
  - Agriculture water supply and drainage
  - Water supply for agriculture irrigation systems and underground water pumping
  - Extraction of water from rivers, lakes and reservoirs

Specifications
Capacity: up to 108m³/h
Head: up to 31 meters
Power: 1.5kW (2HP) to 5.5 kW (7.5HP)
Power supply: three phase 400V ± 10%,50Hz 380V ± 10%,60Hz

Insulation Class: F
Protection Class: IP68
Cable length: 8m
Water temperature: up to 40 °C
Max. water depth: 25m

Special features on request
  - Other Voltages
  - The length of cable is optional
