Design and Advanced Features

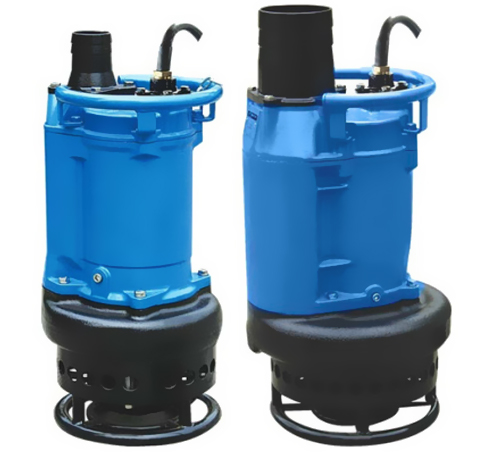

Submersible slurry pump with a 4-pole motor for an increased lifetime and greater convenience. High chrome alloy impeller combined with agitator for pumping heavy slurry. Slim design with a top discharge enabling installation in smaller casing. For bentonite mixed water in Foundation works or Muddy water in civil engineer works.

Applications
  - Civil engineering
  - Mines, quarrles, coal ore & slurrles
  - Sewage treatment plants
  - General pumping purposes
  - Pumping Fluid: Sludge, liquids containing mud and bentonite

Specifications
Capacity: up to 390m³/h
Head: up to 42 meters
Discharge: 80mm(3") to 200mm(8")
Power: 4kW (5.5HP) to 37 kW (50HP)
Power supply: three phase 380V + 10%, 50Hz 380V + 10%, 60Hz

Insulation Class: F
protection Class: IP68
Cable length: 8m
Water temperature: up to 40°C
Max. water depth: 15m

Special features on request
  - Other voltages
  - The length of cable is optionall
