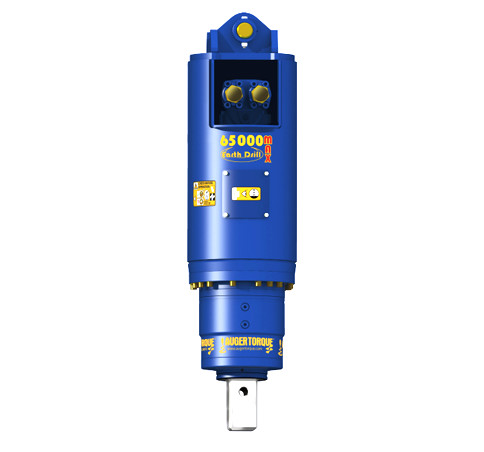

65 000max Earth Drill
65 000max Earth Drill
EXCAVATORS
21 - 45 T (46,300 - 99,200 Lbs)
Pa Series Augers
300mm-2.4m (12 In. - 96 In.) Dia
Engine Specifications:
| MODEL | 65000 MAX |
|---|---|
| Carrier Weight | 21-45t |
| Oil Pressure Range | 160 - 320 Bar |
| Torque Range | 33295 - 66589 Nm |
| Oil Flow Range | 100 - 280 lpm * |
| Speed Range | 8 - 21 rpm |
| Hub Options | 110mm Square |
| Height | 1556 mm |
| Width | 406 mm |
| Weight | 480kg |
| Hitch Options | Single Pin Hitch Double Pin Cradle Hitch PA |
| Auger Range | PA |
| Rec. Drilling Diameter Range | 300 - 2400 mm |
