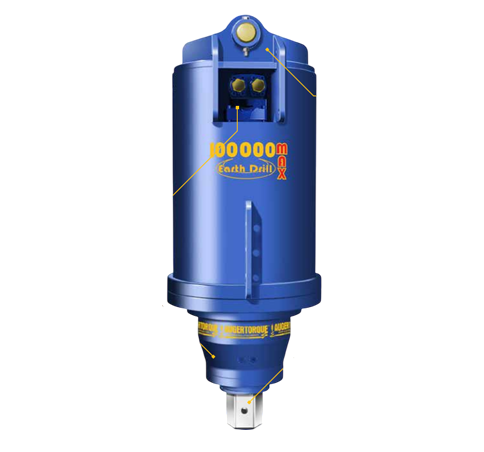

100,000 Max Earth Drill
100,000 Max Earth Drill
Specifications
Suitable For Excavators
21 - 50t (42,000 - 110,231 Lbs)
Torque Range : 45,746 - 100,069 Nm (33,741 - 73,807 Ft-lb)
Oil Pressure Range : 160 - 350 Bar (2321 - 5,076 Psi)
Oil Flow Range : 100 - 280 Lpm (26.4 - 74.0 Gpm)
Speed Range : 5 - 15 Rpm
Unit Height : 1,653mm (65.1in)
Unit Diameter : 640mm (25.2in)
Unit Weight : 1012 Kg (2,231 Lbs)
Output Shaft
150mm Hex
Hitch Options
Double Pin Cradle
Valve Options
2 Way Valve - Converts Single Acting Hammer Into
A 2 Way Auxiliary Flow
Engine Specifications:
| MODEL | 100000 MAX |
|---|---|
| Suitable for Excavators | 21-50t |
| Oil Pressure Range | 160 - 350 Bar (2321 - 5,076 psi) |
| Torque Range | 45,746 - 100,069 Nm (33,741 - 73,807 ft-lb) |
| Oil Flow Range | 100 - 280 lpm (26.4 - 74.0 gpm) |
| Speed Range | 5 - 15 rpm |
| Hub Options | 150mm Hex |
| Height | 1,623 mm (63.90in) |
| Diameter | 636mm (25.04in) |
| Weight | 1061 kg (2,339 lbs) |
| Hitch Options | Double Pin Cradle Hitch |
| Valve Options | 2 Way Valve - Converts single acting hammer into a 2 way auxiliary flow |
